Products Description

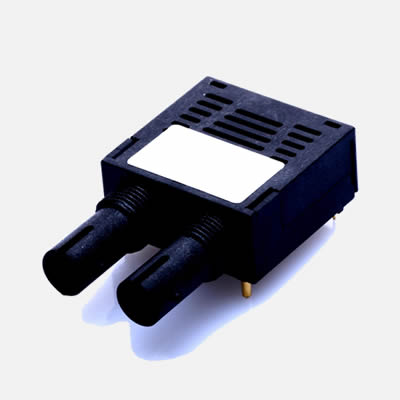

The DC~2Mbps 1x9 optical module is an ideal choice for ultra low speed communication networks, with various characteristics and advantages that can meet the needs of different users. It has broad application prospects in industrial automation, data communication, security monitoring and other fields.
It should be noted that the DC~2Mbps 1x9 optical module may not have digital diagnostic monitoring (DDM) function, so other means may be required for troubleshooting and maintenance. In addition, specific product parameters and performance may vary depending on the manufacturer and model, therefore, corresponding product manuals and technical specifications should be referred to when selecting and using.
Features
Single +3.3V or +5.0V Power Supply is optional.
Optical transceivers features 1X9 Pin Package
Dual data-rate of 1.25Gbps operation
With metal SC, FC, ST fiber connection interface
Operating wavelength 850nm or 1310nm or 1490nm or 1550nm
2km with 50/125μm multi-mode fiber (MMF) of maximum interconnect distances
120km with 9/125μm single-mode fiber (SMF) of maximum interconnect distances
Standard LVPECL logical interface,LVTTL or LVPECL Signal detect output
Operating case temperature：
Standard(C):0°C~+70°C
Industrial(I):-40°C~+85°C
Applications
Fast Ethernet
Fiber Channel
Other FiberLink

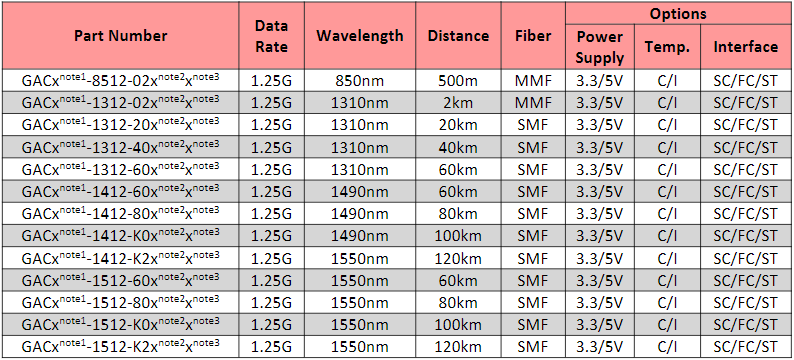

OrderInformation
Note1:“x”=N,Power Supply is 3.3V; “x”=L, Power Supplyis 5.0V.
Note2: Part Number "x" indicates that the case temperature form is determined. If the case temperature of 0°C~+70°C is space, the -40°C~+85°C is“I”
Note3: Part Number "x" indicates that the inter face form is determined, where the representation is chosen according to the client's interface form. If the interface of SC is no, the FC interface is“F”, the ST interfaceis”T”. For example SC interface product Number GACx-1312-02. FC interface product Number GACx-1312-02xF. ST interface product Number GACx-1312-02xT.
