Products Description
Features
Available in all C‐Band Wavelengths on the 100GHz
Hot‐pluggable SFP+ package with Duplex LC receptacle connector
Operating Data Rate up to 10.3125Gbps
Link Distance up to 80km with 9/125μm SMF
Built‐in Digital Diagnostic Monitoring (DDM) function, Compliant with SFF‐8472
Single 3.3V Power Supply and CML Logic Interface
DWDM EML transmitter and high performance PIN‐TIA/APD receiver
Operating case temperature:
Standard(C):0°C~+70°C
Extended(E):‐20°C~+85°C
Industrial(I):‐40°C~+85°C
Ultra‐Industrial(UI):‐45°C~+95°C
Applications
10GBASE‐ER/ZR
DWDM Network
10Gbps Fiber Channel
Order Information：

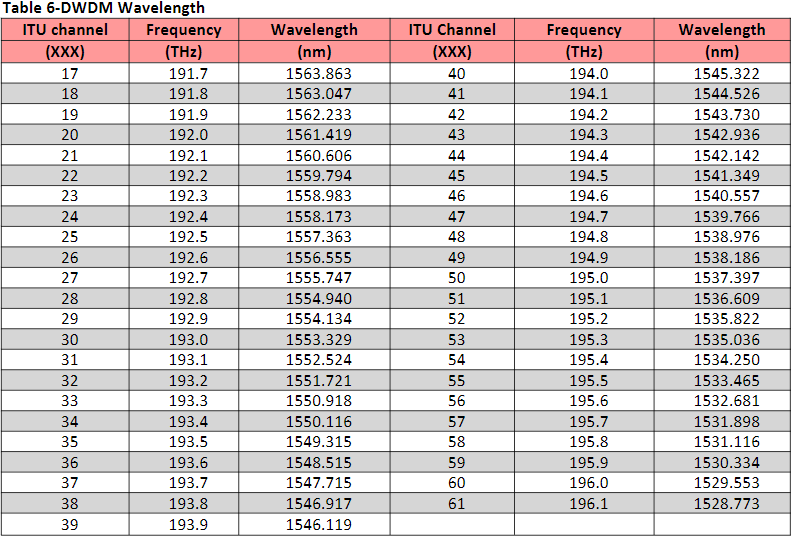

Note1: See table6
Note2: Part Number "xxx" indicates that the wavelength form is determined, See Table-6, For example 1567.13nm wavelength product Number GDCP-C1396-40xx.
Note3: “x”=space,Standard:0°C~+70°C;“x”=E,Extended:-20°C~+85°C;“x”=I,Industrial:-40°C~+85°C,“x”=UI,Ultra-Industrial:-45°C~+95°C.
