Products Description

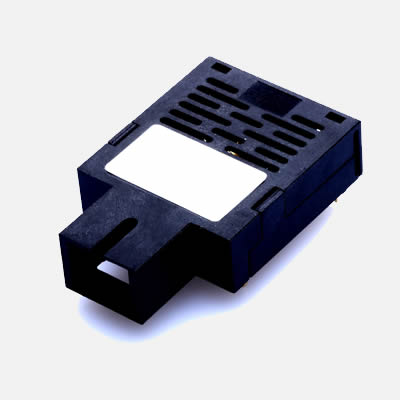

The 155M BIDI 1x9 optical module is a special type of fiber optic transceiver module with bidirectional transmission (BIDI) function, supporting a data transmission rate of 155Mbps, and adopting a 1x9 packaging form.
Here is a brief introduction to the optical module:Bidirectional communication: The 155M BIDI 1x9 optical module allows for simultaneous data transmission and reception on the same optical fiber, achieving bidirectional communication. This design simplifies fiber optic cabling, reduces costs, and improves network efficiency.
High speed transmission: This optical module supports a transmission rate of 155Mbps and is suitable for high-speed data transmission applications. This enables it to meet the needs of most modern communication networks, including Ethernet, SONET/SDH, etc.
Stability and reliability: 155M BIDI 1x9 optical modules typically have excellent stability and reliability, and can operate normally in harsh environmental conditions. This makes it suitable for various commercial and industrial applications.
Packaging form: Adopting a 1x9 packaging form, the optical module has a compact size and standard pin arrangement, making it easy to integrate and install.
Temperature adaptability: This optical module typically has a wide operating temperature range to adapt to different environmental conditions. This enables it to run stably in different application scenarios.
It should be noted that specific product parameters and performance may vary depending on the manufacturer and model. Therefore, when selecting and using, it is recommended to choose the appropriate manufacturer and model based on actual needs and application scenarios, and refer to the corresponding product manual and technical specifications for operation.
In addition, the 155M BIDI 1x9 optical module typically supports multiple wavelengths, such as 1310nm and 1550nm, to meet the needs of different fiber optic communication systems. Meanwhile, the optical module may also have other features, such as digital diagnostic function (DDM), to provide remote monitoring and troubleshooting capabilities. These characteristics may vary depending on the product, so specific understanding of product specifications and performance is important when selecting and using them.
Features
Single +3.3V or +5.0V Power Supply is optional
Optical transceivers features 1X9 Pin Package
Dual data-rate of 155Mb psoperation
With metal SC, FC, ST fiber connection interface
60km with 9/125μm single-mode fiber (SMF) of maximum interconnect distances
Standard LVPECL logical interface,LVTTL or LVPECL Signal detect output
Operating case temperature：Standard(C):0°C~+70°C
Industrial(I):-40°C~+85°C
Applications
Fast Ethernet
Fiber Channel
Other FiberLink

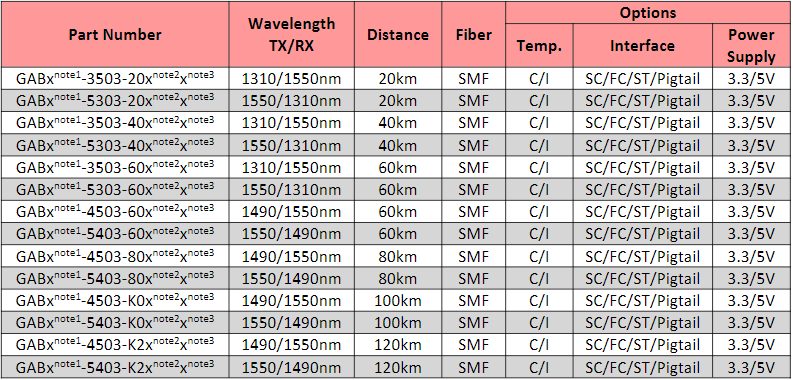

OrderInformation
Note1:“x”=N,Power Supply is 3.3V; “x”=L, Power Supplyis 5.0V.
Note2: Part Number "x" indicates that the case temperature form is determined. If the case temperature of 0°C~+70°C is space, the -40°C~+85°C is“I”
Note3: Part Number "x" indicates that the inter face form is determined, where the representation is chosen according to the client's interface form. If the interface of SC is no, the FC interface is“F”, the ST interfaceis”T”. For example SC interface product Number GACx-1303-02. FC interface product Number GACx-1303-02xF. ST interface product Number GACx-1303-02xT.
