Products Description
1.Features
Operating Data Rate up to 1.25Gbps
Up to 160km with 9/125 µm SMF
Up to 550m with 50/125 µm MMF
Up to 300m with 62.5/125 µm MMF
Single 3.3V Power Supply and LVTTL Logic Interface
Hot-Pluggable SFP Footprint Duplex LC or BIDI LC/SC Connector
Interface Class 1 FDA and IEC60825-1 Laser Safety Compliant
Operating Case Temperature
Standard: 0℃~+70℃
Extended: -20℃~+85℃
Industrial: -40℃~+85℃
Compliant with SFP MSA Specification
Compliant with SFF-8472
RoHS 6 compliance
2.Applications
Gigabit Ethernet
SDH/STM-8;SONET/OC-24
Fiber Channel links
ATM Switches and Routers
SONET/SDH Switch Infrastructure
3.General

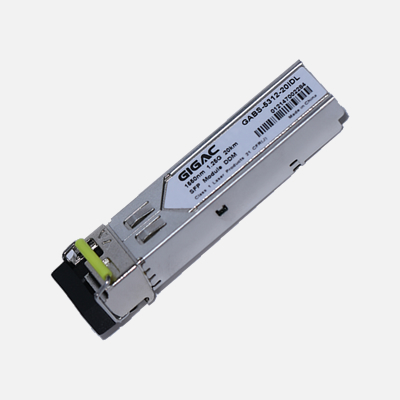

The GIGAC's Multi-rate Series 1.25Gb/s transceiver module integrates optics and electronics in a Small Form Factor Pluggable (SFP) package. It is Multisource Agreement (MSA) compatible and designed for operation at 1310 nm and 1550 nm 850nm. Its microprocessor - based modular design implements all features specified in the SFP MSA compatible 2-wire Serial Digital Diagnostic Monitoring Interface for Optical Transceivers. These modules are also used for Fast Ethernet application.
OC-12 or STM-4 is a network line with transmission speeds of up to 622.08 Mbit/s . OC-24 or STM-8 is a network line with transmission speeds of up to 1244.16 Mbit/s .
4.Order Information
Table 1-Order Information
Part Number | Data Rate | Wavelength | Distance | Fiber | Options | ||
Interface | DDMI | Temp. | |||||
1.25G | 850nm | 550m | MMF(2) | Duplex LC | N/Y | C/E/I | |
GACS-1312-02Mx | 1.25G | 1310nm | 2km | MMF | Duplex LC | N/Y | C/E/I |
GACS-1312-20x | 1.25G | 1310nm | 20km | SMF | Duplex LC | N/Y | C/E/I |
GACS-1312-40x | 1.25G | 1310nm | 40km | SMF | Duplex LC | N/Y | C/E/I |
GACS-1312-80x | 1.25G | 1310nm | 80km | SMF | Duplex LC | N/Y | C/E/I |
GACS-1512-40x | 1.25G | 1550nm | 40km | SMF | Duplex LC | N/Y | C/E/I |
GACS-1512-80x | 1.25G | 1550nm | 80km | SMF | Duplex LC | N/Y | C/E/I |
GACS-1512-k0x | 1.25G | 1550nm | 100km | SMF | Duplex LC | N/Y | C/E/I |
GACS-1512-k2x | 1.25G | 1550nm | 120km | SMF | Duplex LC | N/Y | C/E/I |
GACS-1512-k6x | 1.25G | 1550nm | 160km | SMF | Duplex LC | N/Y | C/E/I |
GABS-3512-02Mx | 1.25G | T1310/R1550 | 2km | MMF | BIDI LC/SC | N/Y | C/E/I |
GABS-5312-02Mx | 1.25G | T1550/R1310 | 2km | MMF | BIDI LC/SC | N/Y | C/E/I |
GABS-3512-20x | 1.25G | T1310/R1550 | 20km | SMF | BIDI LC/SC | N/Y | C/E/I |
GABS-5312-20x | 1.25G | T1550/R1310 | 20km | SMF | BIDI LC/SC | N/Y | C/E/I |
GABS-3512-40x | 1.25G | T1310/R1550 | 40km | SMF | BIDI LC/SC | N/Y | C/E/I |
GABS-5312-40x | 1.25G | T1550/R1310 | 40km | SMF | BIDI LC/SC | N/Y | C/E/I |
GABS-4512-80x | 1.25G | T1490/R1550 | 80km | SMF | BIDI LC/SC | N/Y | C/E/I |
GABS-5412-80x | 1.25G | T1550/R1490 | 80km | SMF | BIDI LC/SC | N/Y | C/E/I |
GABS-4512-K2x | 1.25G | T1490/R1550 | 120km | SMF | BIDI LC/SC | N/Y | C/E/I |
GABS-5412-K2x | 1.25G | T1550/R1490 | 120km | SMF | BIDI LC/SC | N/Y | C/E/I |
(1): The end symbol “x” of PN indicate the optional items, just like “Interface”“temperature”、“with/without DDM function”.
(2): “MMF” stands for 50/125µm MMF
