Products Description

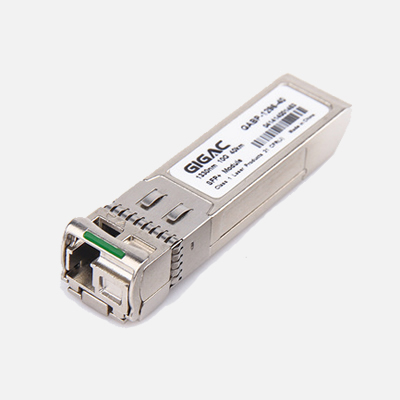

The BIDI SFP+optical module launched by GIGAC Technology uses a 1330 (1270) (1490nm) transmitter and a 1270 (1330) (1550nm) receiver, suitable for bidirectional 10G serial optical data communication such as IEEE 802.3ae 10GBASE-BX. The transceiver consists of two parts: the transmitting part uses a multi quantum well 1330 (1270) nm DFB laser, which conforms to The first level laser of safety standard IEC 60825. The receiving part uses an integrated 1270 (1330) nm detector preamplifier (IDP) installed on an optical head and a limiting amplifier integrated circuit.
Features:
A fiber optic Bi Di SFP+optical module, Bidi WDM SFP+
Up to 11.3 Gbps bidirectional data link
Fully compliant with SFP+MSA
Compliant with IEEE 802.3ae 10GBASE-BX standard
Digital diagnostic function
Simplex LC connector
1330 tx/1270 rx 1270 tx/1330 rx, 1490 tx/1550 rx 1550 tx/1490 rx
The distance can reach 10, 20, 40, 60, and 80 kilometers
Only a+3.3 V power supply is needed
Passed lead-free safety inspection
-Operating temperature range of casing from 40 to 85 ℃ or 0 to 70 ℃
Application field:
10GBASE-BX 10.3125/11.1/11.3 Gb/s
10GBASE-BX 9.953 Gb/s
1000 year Base LX Ethernet
8 xfc 8.5 gbps
4 xfc 4.25 exchange capacity
2 xfc 2.125 exchange capacity
1 xfc 1.0625 gbps
Ordering Information：
Part No. Fiber Type Data Rate Range Wave Optical Comp. Distance Range Case Tem.
GACP-BI1696-3M-ADL MMF 9.95~11.3G 1270/1330 DFB/PIN 150m 0~70
GACP-BI1696-3M-DAL MMF 9.95~11.3G 1330/1330 DFB/PIN 150m 0~70
GACP-BI1696-9ADL SMF 9.95~11.3G 1270/1330 DFB/PIN 10km 0~70
GACP-BI1696-9DAL SMF 9.95~11.3G 1330/1270 DFB/PIN 10km 0~70
GACP-BI1696-12ADL SMF 9.95~11.3G 1270/1330 DFB/PIN 20km 0~70
GACP-BI1696-12DAL SMF 9.95~11.3G 1330/1270 DFB/PIN 20km 0~70
GACP-BI1696-16ADL SMF 9.95~11.3G 1270/1330 DFB/PIN 40km 0~70
GACP-BI1696-16DAL SMF 9.95~10.3G 1330/1270 DFB/PIN 40km 0~70
GACP-BI1696-21ADL SMF 9.95~11.3G 1270/1330 DFB/APD 60km 0~70
GACP-BI1696-21DAL SMF 9.95~11.3G 1330/1270 DFB/APD 60km 0~70
GACP-BI1696-22LOL SMF 9.95~11.3G 1490/1550 EML/APD 80km 0~70
GACP-BI1696-22OLL SMF 9.95~11.3G 1550/1490 EML/APD 80km 0~70
GACP-BI1696-9ADIL SMF 9.95~11.3G 1270/1330 DFB/PIN 10km -40~85
GACP-BI1696-9DAIL SMF 9.95~11.3G 1330/1270 DFB/PIN 10km -40~85
GACP-BI1696-12ADIL SMF 9.95~11.3G 1270/1330 DFB/PIN 20km -40~85
GACP-BI1696-12DAIL SMF 9.95~11.3G 1330/1270 DFB/PIN 20km -40~85
GACP-BI1696-16ADIL SMF 9.95~10.3G 1270/1330 DFB/PIN 40km -40~85
GACP-BI1696-16DAIL SMF 9.95~11.3G 1330/1270 DFB/PIN 40km -40~85
GACP-BI1696-21ADIL SMF 9.95~11.3G 1270/1330 DFB/APD 60km -40~85
GACP-BI1696-21DAIL SMF 9.95~11.3G 1330/1270 DFB/APD 60km -40~85
Part No. Data Rate Laser Temp. Power budget CDR DDMI
GACP-BI1696-9ADRL 9.953~11.3Gbps 1270nm DFB Standard 9dB YES YES
GACP-BI1696-9DARL 9.953~11.3Gbps 1330nm DFB Standard 9dB YES YES
GACP-BI1696-9ADRIL 9.953~11.3Gbps 1270nm DFB Industrial 9dB YES YES
GACP-BI1696-9DARIL 9.953~11.3Gbps 1330nm DFB Industrial 9dB YES YES
GACP-BI1696-12ADRL 9.953~11.3Gbps 1270nm DFB Standard 12dB YES YES
GACP-BI1696-12DARL 9.953~11.3Gbps 1330nm DFB Standard 12dB YES YES
GACP-BI1696-12ADRIL 9.953~11.3Gbps 1270nm DFB Industrial 12dB YES YES
GACP-BI1696-12DARIL 9.953~11.3Gbps 1330nm DFB Industrial 12dB YES YES
GACP-BI1696-16ADRL 9.953~11.3Gbps 1270nm DFB Standard 16dB YES YES
GACP-BI1696-16DARL 9.953~11.3Gbps 1330nm DFB Standard 16dB YES YES
GACP-BI1696-16ADRIL 9.953~11.3Gbps 1270nm DFB Industrial 16dB YES YES
GACP-BI1696-16DARIL 9.953~11.3Gbps 1330nm DFB Industrial 16dB YES YES
GACP-BI1696-21ADRL 9.953~11.3Gbps 1270nm DFB Standard 21dB YES YES
GACP-BI1696-21DARL 9.953~11.3Gbps 1330nm DFB Standard 21dB YES YES
GACP-BI1696-21ADRIL 9.953~11.3Gbps 1270nm DFB Industrial 21dB YES YES
GACP-BI1696-21DARIL 9.953~11.3Gbps 1330nm DFB Industrial 21dB YES YES
