Products Description
SFP+10G EPON OLT optical module is an optical communication module used for 10G Ethernet passive optical network (EPON) optical line terminal (OLT) devices, using a small package form SFP+. The SFP+10G EPON OLT optical module plays a crucial role in the EPON network, converting optical signals into electrical signals and achieving high-speed data transmission through optical fibers. They provide reliable and efficient solutions, providing users with high bandwidth network access and transmission capabilities. Especially suitable for EPON application scenarios that require high speeds, such as broadband access, data center interconnection, etc.
Features：
Support IEEE802.3-av 10/10G base PR X 30symmetric EPON OLT；
Support IEEE802.3-2008 EPON OLT；
Single fiber, Integrated with micro-optics WDM filter；
1577nm 10G continuous-mode EML laser；
Single fiber, Integrated with micro-optics WDM filter；
1577nm 10G continuous-mode EML laser；
1490nm 1.25G continuous-mode DFB laser；
Rx with 1.25G(1310nm) compatible burstmode APD-TIA；
Digital diagnostic INF-8077i compliant
SFP+ MSA package with SC/UPC receptacle optical interface
+3.3V power supplies
Operating case temperature:0 to 70 ºC
RoHS with exemption
Applications：
Asymmetric 10G EPON OLT

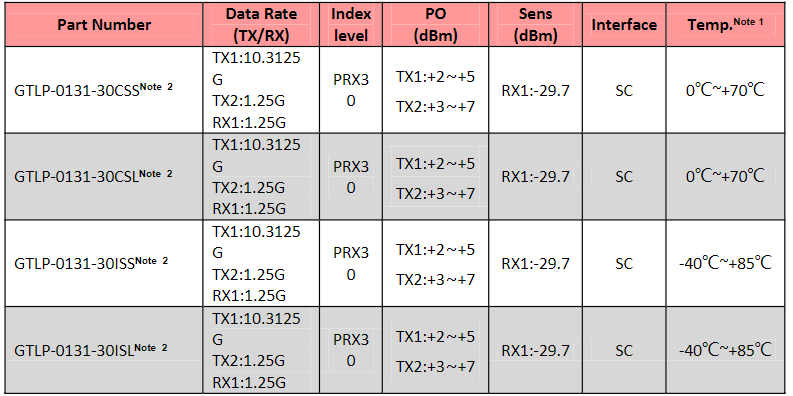

Order Information：
Note:
1.The Temp is Operating Case Temperature Range.
2.Receiver Signal Detected
S:RX-SD(RX-SD=0:signal loss RX-SD=1:signal valid);
L:Rx-LOS(RX-LOS=0:signal valid RX-LOS=1:signal loss).
