Products Description

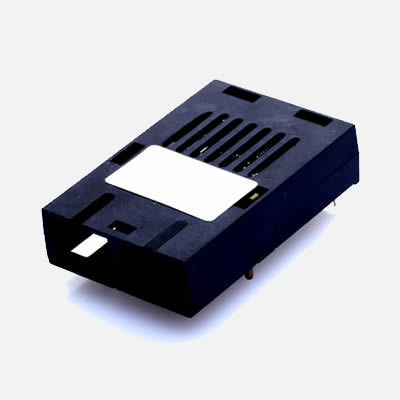

The 1x9 DC~2Mbps optical module is a fiber optic communication device suitable for various environments and usage scenarios. Its flexible transmission distance and wide compatibility make it an ideal choice for building fiber optic communication networks. For more information, it is recommended to contact our online customer service for technical documentation
Features
Single +3.3V or +5.0V Power Supply is optional
Optical transceivers features 1X9 Pin Package
Operating data rate from DC to 2Mbps
With plastic SC, FC, ST fiber connection interface
Operating wavelength 850nm, 1310nm, 1550nm or CWDM and high performance PIN-TIA receiver
Operating Digital Diagnostic Monitoring (DDM) function, Compliant with SFF-8472
Standard TTL logical interface,LVTTLSignal detect output
Operating case temperature：
Standard(C):0°C~+70°C
Industrial(I):-40°C~+85°C
Usage in harsh environment enabled by conformal coatin
Applications
Suitable for optical fiber transmission systems with rates below DC~2Mbps
RS232/RS485/RS422 receptacle fiber transmission
Other industrial control areas

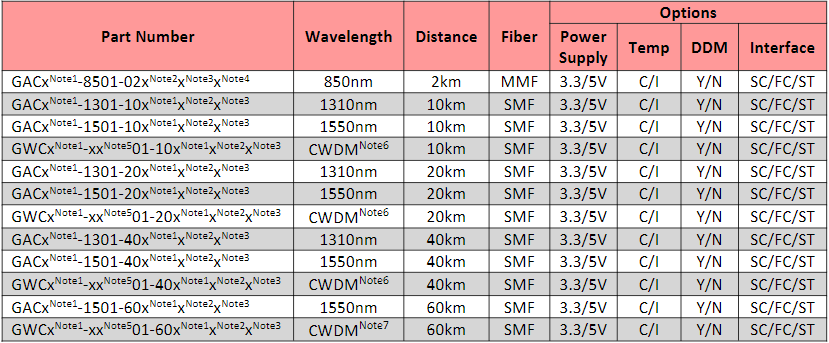

OrderInformation
Note1:“x”=N,Power Supply is 3.3V; “x”=L, Power Supplyis 5.0V.
Note2: Part Number "x" indicates that the case temperature form is determined. If the case temperature of 0°C~+70°C is space, the -40°C~+85°C is“I”
Note3:“x”=D, with DDM; “x”= space, with out DDM; “x”=Y, with conformal coating; “x”=N, with DDM and conformal coating
Note4: Part Number "x" indicates that the inter face form is determined, where the representation is chosen according to the client's interface form. If the interface of SC is no, the FC interface is“F”, the ST interfaceis”T”. For example SC interface product Number GACx-1301-40xx. FC interface product Number GACx-1301-40xxxF. ST interface product Number GACx-1301-40xxT.
Note5: Part Number "xx" indicates that the wavelength form is determined, See Table-6, For example 1270nm wavelength product Number GACx-2701-40xxx.
Note6:The module uses DFB lasers.
Note7:The 60km module is only has DFB Laser at 1470nm to 1610nm.
