Features

Hot-pluggable SFP+ package with Duplex LC receptacle connector

Operating Data Rate from 155Mbps to 1.25Gbps

Built-in Digital Diagnostic Monitoring (DDM) function,Compliant with SFF-8472

Single 3.3V Power Supply and CML Logic Interface

Ultra low sensitivity

Operating case temperature:

Standard(C):     0℃~+70℃

Extended(E): -20℃~+85℃

Industrial(I):  -40℃~+85℃

Applications

1.25Gbps Fiber Channel

Other optical Links

Order Information

Table 1-Receiver order information

Note 1: “x”=space, Standard:  0℃~+70℃; “x”=E, Extended: -20℃~+85℃; “x”=I, Industrial:  -40℃~+85℃.

Absolute Maximum Ratings

Table 2-Absolute Maximum Ratings

*Exceeding any one of these values may destroy the device immediately.

Operating Environment

Table 3-Operating Environment

Electrical Characteristics

Table 4-Electrical Characteristics

Optical Characteristics

Table 5-Optical Characteristics GARS-XX12-80xDLA

Note:

1. Coupled into 9/125µm SMF

2. Minimum average optical power at BER less than 1E-12, with a 2^7-1 NRZ PRBS and ER=8.5dB.

3. LOS Hysteresis.See Figure 1

Figure 1  LOS Hysteresis

Pin arrangement

Figure 2  Pin arrangement

Figure 3  Pin View

Table 7-Receiver Connector Pin Assignment

Note:

1. SDA,SCL,MOD-ABS. These are the module definition pins. They should be pulled up with a 4.7~10K resistor on the host board

to supply less than VccT+0.3V or VccR+0.3V.

MOD-ABS is grounded by the module to indicate that the module is present.

SCL is clock line of two wire serial interface for optional serial ID.

SDA is data line of two wire serial interface for optional serial ID.

2. LOS (Loss of signal) is an open collector output, which should be pulled up with a 4.7k~10kΩ resistor on the host board to a

voltage between 2.0V and Vcc+0.3V. Logic 0 indicates normal operation; logic 1 indicates loss of signal. In the low state, the output will be pulled to less than 0.8V.

4. These are the differential receiver outputs. They are AC-coupled 100Ω differential lines which should be terminated with 100Ω

differential at the user SERDES. The AC coupling is done inside the module and thus not required on the host board.

5. These are the differential transmitter inputs. They are AC-coupled, differential lines with 100Ω differential termination inside

the module.

Digital Diagnostic Memory Map

The SFP series defines a 256-byte memory map in EEPROM describing the transceiver’s capabilities, standard interfaces, manufacturer, and other information, which is accessible over a 2 wire serial interface at the 8-bit address 1010000X (A0h),see Figure. The memory contents refer to SFF-8472 Rev 9.5. A2 EEPROM Definition Specific settings please consult our engineer.

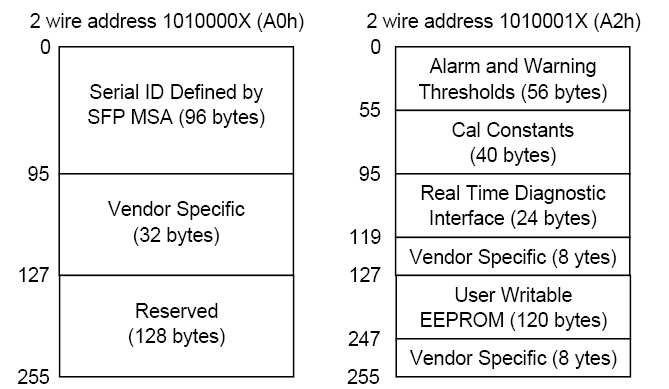

Figure 5  Memory Map

  Recommended Interface Circuit

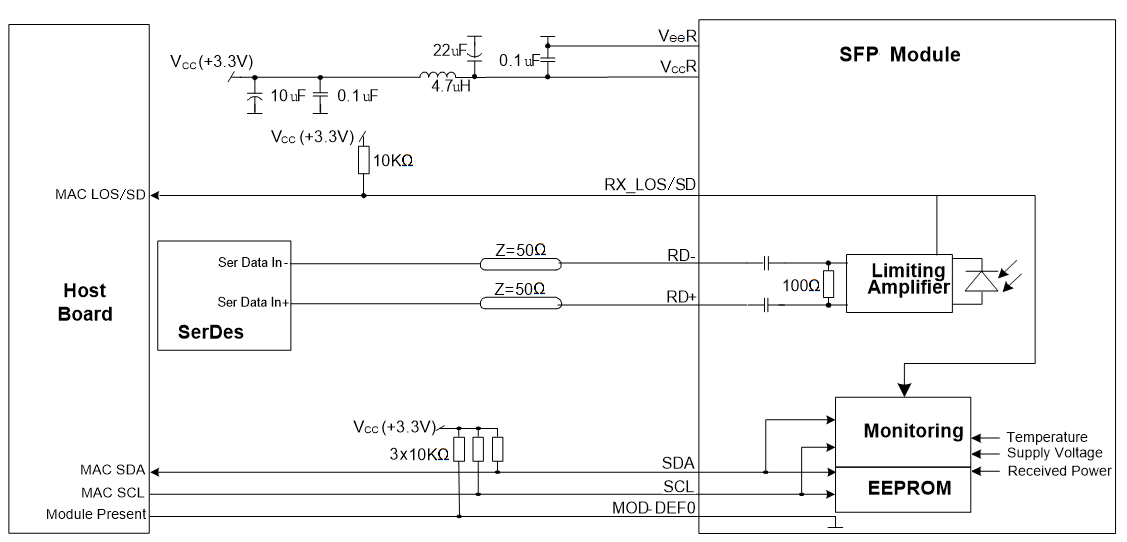

 Figure 4  Receiver Recommended Interface Circuit

Mechanical Information

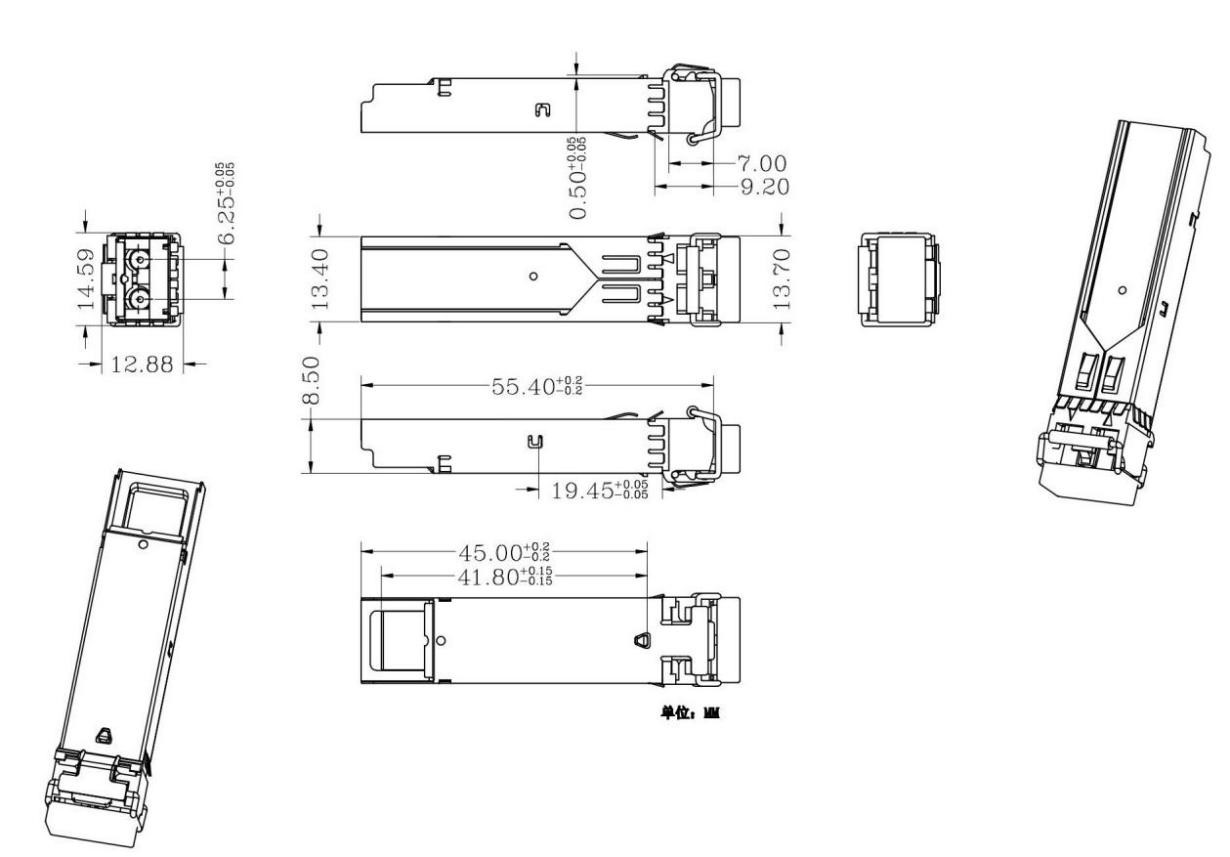

Figure 5  Duplex LC
