Products Description
1.Features

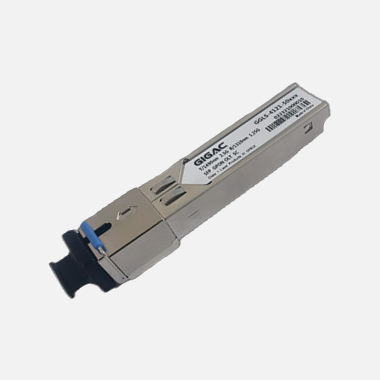

Optical transceiver for Gigabit-capable Passive Optical Networks (GPON) ONU side
Integrated Single fiber bi-directional optical subassembly
SFP Package with SC Receptacle
1310nm DFB laser Burst-mode Transmitter and 1490nm APD Continuous receiver (with WDM)
+3.3V single power supply
Low power consumption
operating case temperature Standard : 0℃~+70℃ Industrial :-40℃~+85℃
2.Applications
GPON ONU B+
3.General
The GPON ONU SFP Transceiver is designed for Gigabit-capable Passive Optical Network（GPON）transmission. The module incorporates 1310nm burst-mode transmitter and 1490nm continuous-mode receiver. The transmitter section uses a 1310nm DFB laser and an integrated BM laser driver which designed to perform very small burst enable/disable delay time. The laser driver also includes digital APC and temperature compensation circuit, which are used for keeping the launch optical power and extinction ratio constant over temperature and aging. The receiver section uses an integrated 1490nm APD photodiode and preamplifier mounted together. It has the function that indicates receiver signal-detected status (active high). An integrated WDM coupler can separate 1490nm input light and 1310nm output light. The metallic package guarantees excellent EMI and EMC characteristics, which totally comply with international relevant standards.
4.Order Information

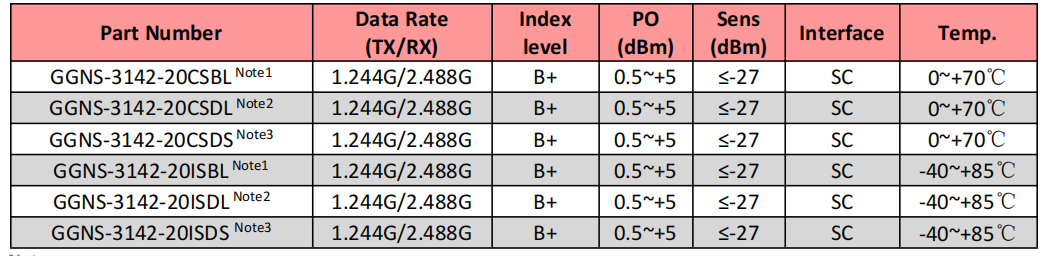

Table-1-Order Information
Note: 1.GGNS-3142-20CSBL/GGNS-3142-20ISBL is transmitter optical output close(Tx-EN ( 0- close the laser 1- open the laser)) or open and Optical receiver Input indicated.( L=Rx-LOS (0- signal valid 1-signal loss) )
Note: 2.GGNS-3142-20CSDL/GGNS-3142-20ISDL is transmitter optical output close(D= Tx-EN (0-open the laser 1-close the laser)) or open and Optical receiver Input indicated.( L=Rx-LOS (0- signal valid 1-signal loss)
Note: 3.GGNS-3142-20CSDL/GGNS-3142-20ISDL is transmitter optical output close(D=Tx-EN (0-open the laser 1-close the laser)) or open and Optical receiver Input indicated.(S=RX-SD （0-signal loss 1-signal valid) )
