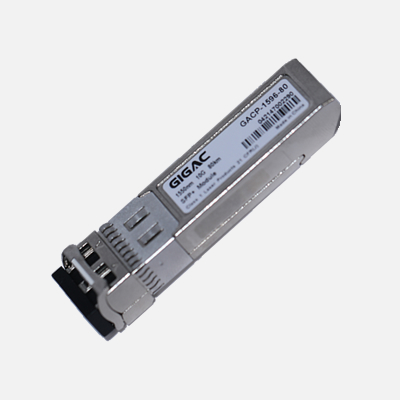

SFP+ 10G 100GHz 100km DWDM Optical Transceiver

SFP+ 10G 100GHz 100km DWDM Optical Transceiver

SFP+10G 100GHz 100km DWDM optical module is a 100 GHz Dense Wavelength Division Multiplexing (DWDM) optical module packaged in SFP+format, supporting a maximum transmission distance of 100 kilometers and a 10 Gigabit Ethernet transmission rate. This optical module adopts 100 GHz DWDM technology, which can multiplex optical signals over a wide channel interval.
Send Inquiry
Description
Products Description

SFP+10G 100GHz 100km DWDM optical module is a 100 GHz Dense Wavelength Division Multiplexing (DWDM) optical module packaged in SFP+format, supporting a maximum transmission distance of 100 kilometers and a 10 Gigabit Ethernet transmission rate. This optical module adopts 100 GHz DWDM technology, which can multiplex optical signals over a wide channel interval. This technology allows for the transmission of multiple signals of different wavelengths in optical fibers and supports high-density and high bandwidth transmission. Using SFP+packaging, it has miniaturization and hot swappable functionality. It can be compatible with devices that support SFP+interfaces, making installation and replacement convenient. Supports transmission distances up to 100 kilometers, suitable for remote fiber optic connections and wide area network transmission needs. Supports transmission rates up to 10 Gbps, providing high-speed data transmission and broadband applications.

Features

Available in all C‐Band Wavelengths on the 100GHz

Hot‐pluggable SFP+ package with Duplex LC receptacle connector

Operating Data Rate up to 10.3125Gbps

Link Distance up to 80km with 9/125μm SMF

Built‐in Digital Diagnostic Monitoring (DDM) function, Compliant with SFF‐8472

Single 3.3V Power Supply and CML Logic Interface

DWDM EML transmitter and high performance PIN‐TIA/APD receiver

Operating case temperature:

Standard(C):0°C~+70°C

Extended(E):‐20°C~+85°C

Industrial(I):‐40°C~+85°C

Ultra‐Industrial(UI):‐45°C~+95°C

Applications

10GBASE‐ER/ZR

DWDM Network

10Gbps Fiber Channel

Order Information:

Note1: Seetable6

Note2: Part Number "xxx" indicates that the wavelength form is determined, See Table-6, For example 1567.13nm wavelength product Number GDCP-C1396-40xx.

Note3: “x”=space,Standard:0°C~+70°C;“x”=E,Extended:-20°C~+85°C;“x”=I,Industrial:-40°C~+85°C,“x”=UI,Ultra-Industrial:-45°C~+95°C.
