Products Description

1.Features

Operating Data Rate up to 25.78Gbps

Operating case temperature

Standard:     0℃~+70℃

Extended: -20℃~+85℃

Industrial: -40℃~+85℃

Operating case temperatureSFP28 package with duplex LC receptacle

connector

Hot-pluggable capability

Single 3.3V power supply

CWDM/MWDM/LWDM  DFB transmitter and high performance PIN  receiver

Up to 10km transmission distance over SMF

Low EMI and excellent  ESD protection

Built- in Digital Diagnostic Monitoring (DDM) function

Class I laser safety standard IEC-60825

compliant

RoHS-6 compliance

2.Applications

25GBASE-LR/LW

25Gbps Fiber Channel

5G eCPRI application

3.General

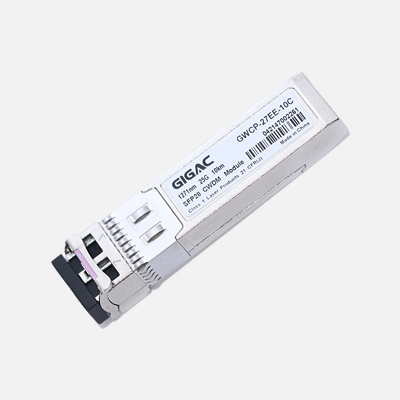

The Gigac 25Gbps SFP28 module GWCP-XXEE-10 transceivers supports 25G CPRI and Ethernet application, it is offered in a cost-effective SFP28 form factor and I2C interface. The module supports a link length up to 10km on standard single mode fiber such as SMF-28.The module converts 25Gbps electrical data to DFB-based high-performance optical signals for optical transmission. Reversely on the receiver side, the module converts 25Gbps optical signal to electrical data with PINTIA based receiver and CDR IC chip. And also the module Compliant with CMCC Open WDM technical requirements.

4.Order Information

Table 1-Order Information

Part Number	Data Rate	Wavelength	Distance	Fiber	Temp.note1
GACP-xxEE-10note2	25G	CWDM	10km	SMF	0℃~+70℃
GACP-xxEE-10Enote2	25G	CWDM	10km	SMF	-20℃~+85℃
GACP-xxEE-10Inote2	25G	CWDM	10km	SMF	-40℃~+85℃
GACP-xxEE-10note3	25G	MWDM	10km	SMF	0℃~+70℃
GACP-xxEE-10Enote3	25G	MWDM	10km	SMF	-20℃~+85℃
GACP-xxEE-10Inote3	25G	MWDM	10km	SMF	-40℃~+85℃
GACP-xxEE-10note4	25G	LWDM	10km	SMF	0℃~+70℃
GACP-xxEE-10Enote4	25G	LWDM	10km	SMF	-20℃~+85℃
GACP-xxEE-10Inote4	25G	LWDM	10km	SMF	-40℃~+85℃

Note: 1. Case Temperatur

eNote: 2. Part Number "XX" indicates that the wavelength form is determined,See Table-6.1,For example 1270nm wavelength product Number GWCP-27EE-10.

Note: 3. Part Number "XX" indicates that the wavelength form is determined,See Table-6.2,For example 1267.5nm wavelength product Number GWCP-M1EE-10.

Note: 4. Part Number "XX" indicates that the wavelength form is determined,See Table-6.3,For example 1269.23nm wavelength product Number GWCP-L1EE-10.
