Products Description
1.Features
Operating Data Rate up to 25.78Gbps
operating case temperature
Standard: 0℃~+70℃
Extended: -20℃~+85℃
Industrial: -40℃~+85℃
SFP28 package with duplex LC receptacle
connector
Hot-pluggable capability
Single 3.3V power supply
850 VESCL , 1310 DFB transmitter and high performance PIN receiver
Up to 10km transmission distance over SMF
SFI electrical interface
Low EMI and excellent ESD protection
Built- in Digital Diagnostic Monitoring (DDM) function
Class I laser safety standard IEC-60825
compliant
RoHS-6 compliance
2.Applications
25GBASE-SR Ethernet
25GBASE-LR/LW
25Gbps Fiber Channel
3.General

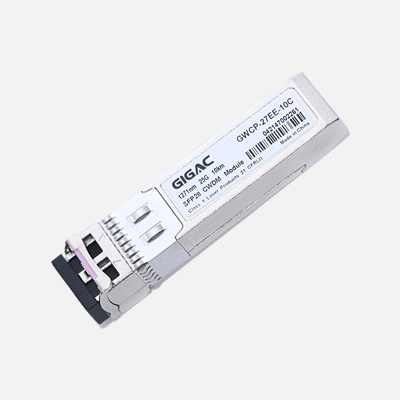

The Gigac 25Gbps Small Form Factor Pluggable SFP28 Transceivermodules offercustomers multi rate of up to 25.78 Gigabit Ethernet connectivity options for 5G fronthaul, Ethernet applications.This document specifies electrical, optical and mechanical characteristics of the 25 Gbps module.Gigac 25Gbps SFP28module GWCP-XXEE-10XLC transceivers supports 25G CPRI and ethernet application, it is offered in a cost-effective SFP28 form factor and I2C interface. The module supports a link length up to 10km on standard single mode fiber such as SMF-28.The module converts 25Gbps electrical data to DFB-based high-performance optical signals for optical transmission. Reversely on the receiver side, the module converts 25Gbps optical signal to electrical data with PINbased receiver and CDR IC chip.
4.Order Information
Part Number | Data Rate | Wavelength | Distance | Fibernote2 | Temp.note1 |
GACP-88EE-02 | 25G | 850nm | 100m | MMF | 0℃~+70℃ |
GACP-88EE-02E | 25G | 850nm | 100m | MMF | -20℃~+85℃ |
GACP-88EE-02I | 25G | 850nm | 100m | MMF | -40℃~+85℃ |
GACP-11EE-10 | 25G | 1310nm | 10km | SMF | 0℃~+70℃ |
GACP-11EE-10E | 25G | 1310nm | 10km | SMF | -20℃~+85℃ |
GACP-11EE-10I | 25G | 1310nm | 10km | SMF | -40℃~+85℃ |
Note: 1. Case Temperature
Note: 2. “MMF” stands for 50/125µm MMF
