Products Description
Suitable for use in aviation, electronics, naval vessels, weaponry, and other systems where installation space is limited. Features a rotary quick-lock mechanism for achieving multi-channel optical communication.
The outer housing can be constructed from various materials and coated to suit different environmental requirements.
Equipped with a five-key positioning system, providing blind mating and error-proof insertion capabilities.
Features a bayonet-style structure for quick and easy connections.
Utilizes ceramic ferrules and sleeves to achieve precise optical alignment and coupling.
Mechanical Properties:
• Mechanical Life: 500 cycles of insertion and extraction
• Shock Resistance: Peak acceleration of 2940m/s² with a duration of 3ms, and a velocity change rate of 5.61m/s
• Vibration Resistance: 10 to 2000Hz, with a power spectral density of 0.2G²/Hz, resulting in an acceleration root mean square (RMS) value of 16.4G
• Tensile Strength: ≥68N (for contact components compatible with Φ2 optical cables)
Environmental Performance:
• Temperature Range: -55°C to +125°C (depending on the optical cable's temperature)
• Salt Spray Resistance:
Type K: 500 hours
Type F: 48 hours
Type W: 500 hours
Type MW: 192 hours (for acidic atmospheres)
Optical Performance:
• Insertion Loss: ≤0.6dB
• Return Loss:
≥ 20dB @ 850nm
≥ 40dB @ 1310nm

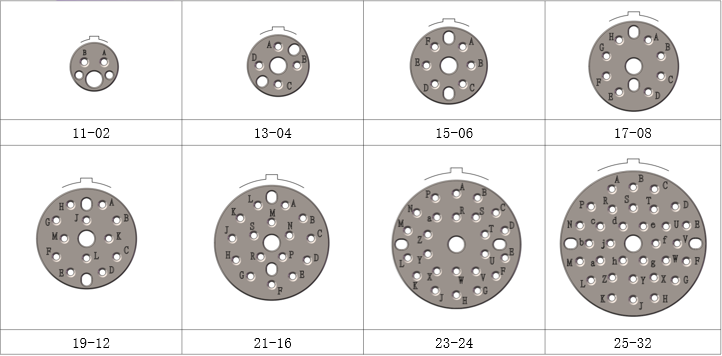

Contact Arrangement (Illustrated by the Plug Mating Surface)
