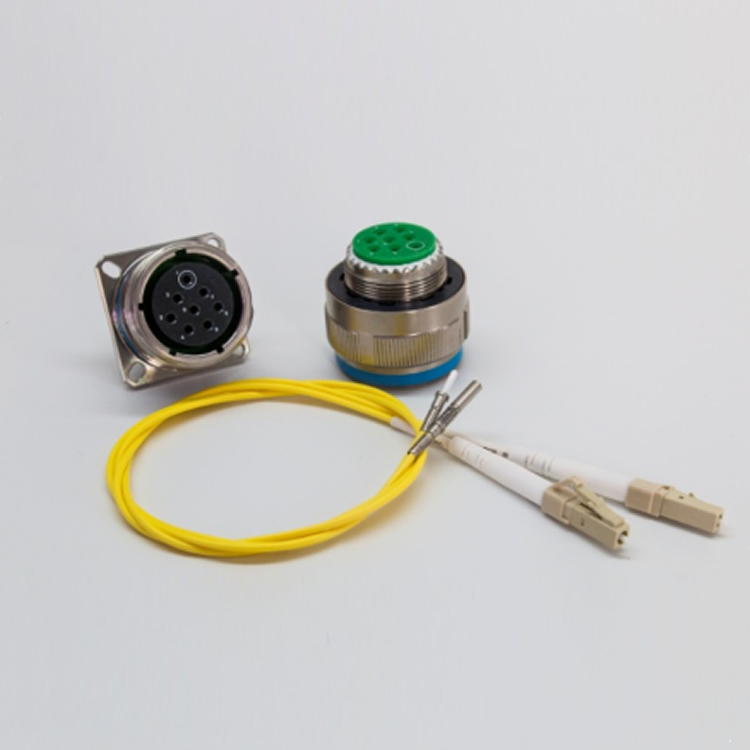

Products Description
Compliant with GJB599B (MIL-DTL-38999) Series Ⅲ Interface
The outer housing can be constructed from various materials and coated to accommodate different environmental requirements.
Equipped with a five-key positioning system that offers blind mating and error-proof insertion capabilities.
Features triple-start threads for quick connection, complemented by an anti-loosening mechanism.
Utilizes ceramic ferrules and sleeves to achieve precise optical alignment and coupling.
Offers a selection of tail accessories to meet diverse needs.
Optional adapter sockets (with optional hermetic sealing) are available, allowing for freedom from optical cable constraints.
Mechanical Properties:
• Mechanical Life: 500 cycles of insertion and extraction
• Shock Resistance: 980m/s²
• Vibration Resistance: 10Hz to 2000Hz, with an acceleration of 147m/s²
• Tensile Strength: ≥720N (for multi-core cables)
Environmental Performance:
• Temperature Range: -55°C to +85°C (depending on the optical cable's temperature)
• Salt Spray Resistance:
Type K: 500 hours
Type F: 48 hours
Type W: 500 hours
Type MW: 192 hours (for acidic atmospheres)
• Fluid Resistance: Resistant to various fuels, coolants, and other fluids
Optical Performance:
• Insertion Loss: ≤0.6dB (for ≤ 4 cores), ≤0.75dB (for ≥ 5 cores)

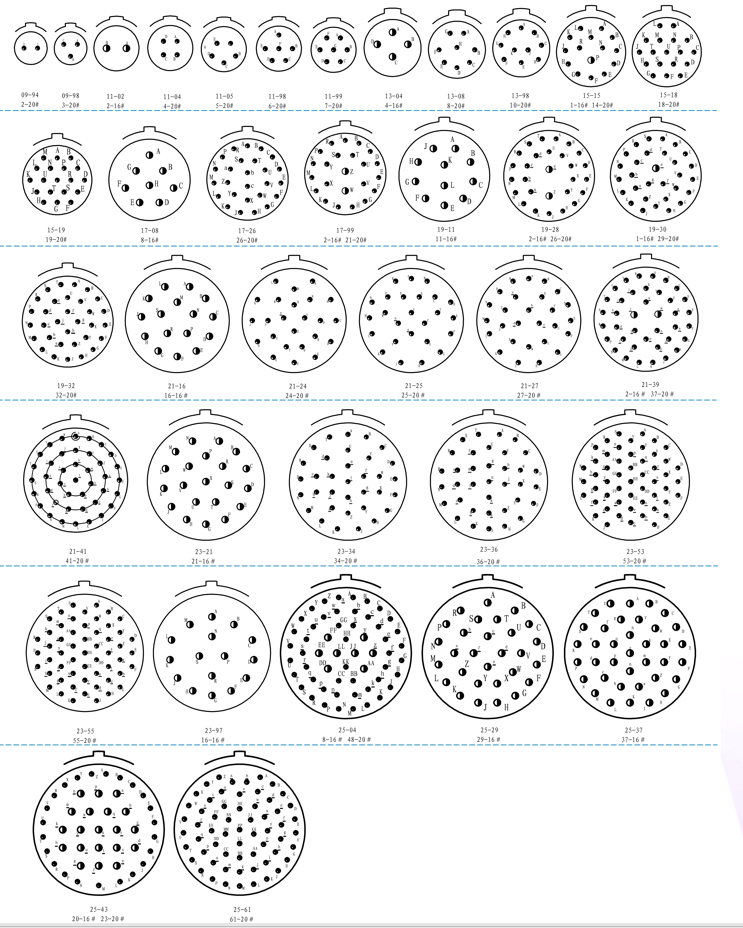

Pin Arrangement (View of Mating Face with Pin Insulators)
