Products Description

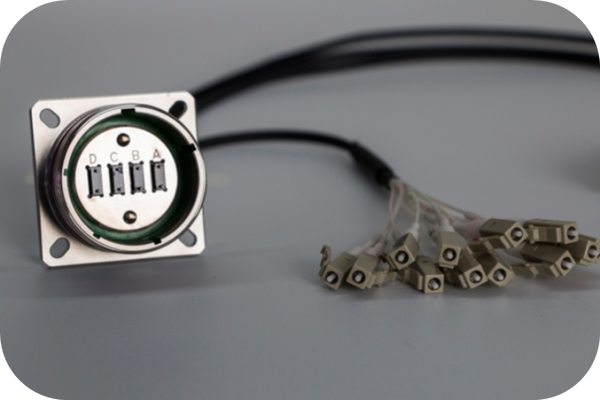

This series of products is an environmentally resistant, high-density circular fiber optic connector developed based on the GJB599Ⅲ series, utilizing 12-core and 24-core MT contacts. It employs a three-stage guidance and positioning system, featuring five-key identification, error-proof insertion, anti-oblique insertion, and blind mating capabilities. The outer shell can be made of different materials and coatings to adapt to various environmental requirements.
Mechanical Properties
• Mechanical Life: 500 cycles of insertion and extraction
• Shock: Acceleration of 490m/s² with a duration of 11ms
• Vibration: 10Hz to 2000Hz, Power Spectral Density of 0.06g²/Hz
Environmental Performance
• Temperature Range: -40℃ to +85℃
• Salt Spray:
Class K: 500 hours
Class F: 48 hours
Class W: 500 hours
Class MW: 192 hours (acidic atmosphere)
Optical Performance
• Insertion Loss: ≤0.6dB

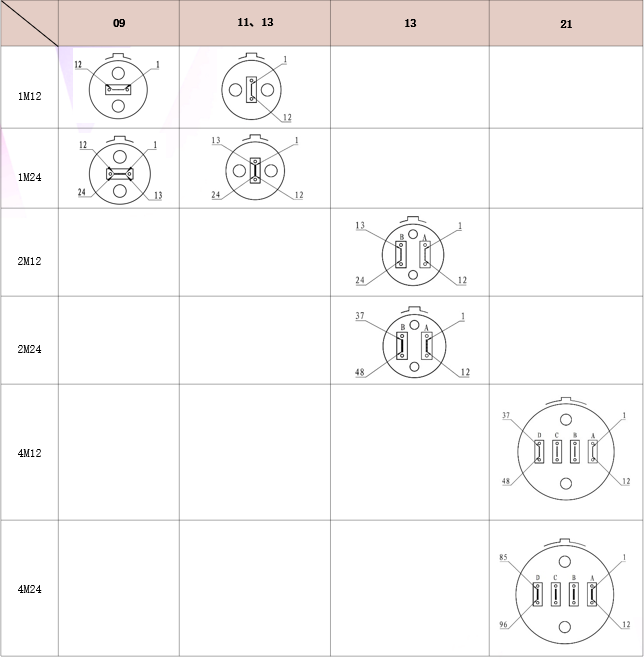

Contact Arrangement (Example based on Socket Mating Face)
