Products Description

Features

Complies with GJB1919A standards,
Features a neutral bayonet lock mechanism for quick connection and disconnection,
Has a wall-passing sealing connection structure with up to 12 cores,
Boasts a neutral design without distinction between male and female ends, allowing for flexible interconnection between plugs and sockets,
Offers a choice of stainless steel, aluminum alloy, or polymer composite materials for the outer shell,
Achieves precise fiber alignment through the use of ceramic ferrules and ceramic sleeves,
Suitable for military communications, military computer systems, nuclear power applications, vehicle-mounted communications, and other emergency communication scenarios.

Mechanical Performance

• Mechanical Life: 500 cycles of insertion and extraction
• Tensile Strength: ≥500N (main cable)
• Vibration: 10Hz to 500Hz, with an acceleration of 980m/s²
• Shock: 980m/s²

Environmental Performance

• Temperature Shock: -40℃ to +80℃
• Ingress Protection Rating: IP67

Optical Performance

• Insertion Loss: ≤0.8dB (for 2-4 cores)
≤1.0dB (for 6-12 cores)

Contact Arrangement

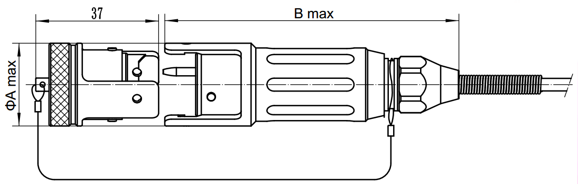

Plug Outer Dimensions

Housing Number	23	31	35	38	40
Outer Diameter   A max	25	32	35	38	40
Length B max	90	111	111	103	111

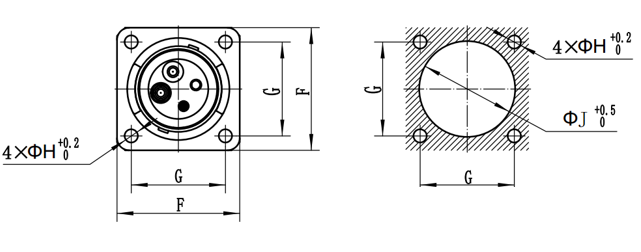

Receptacle Outer Dimensions

Housing Number	C max	D max	E max	F	G	H	J min
23	25	59.5	23	30	23	3.3	23.5
31	32	58	25	34.1	26.4	3.5	25.5
35	35	58	28	39	29.2	3.5	28.5
38	38	72	31	44.7	34.5	4.5	31.5
40	40	58	34	43	35.5	3.5	34.5
