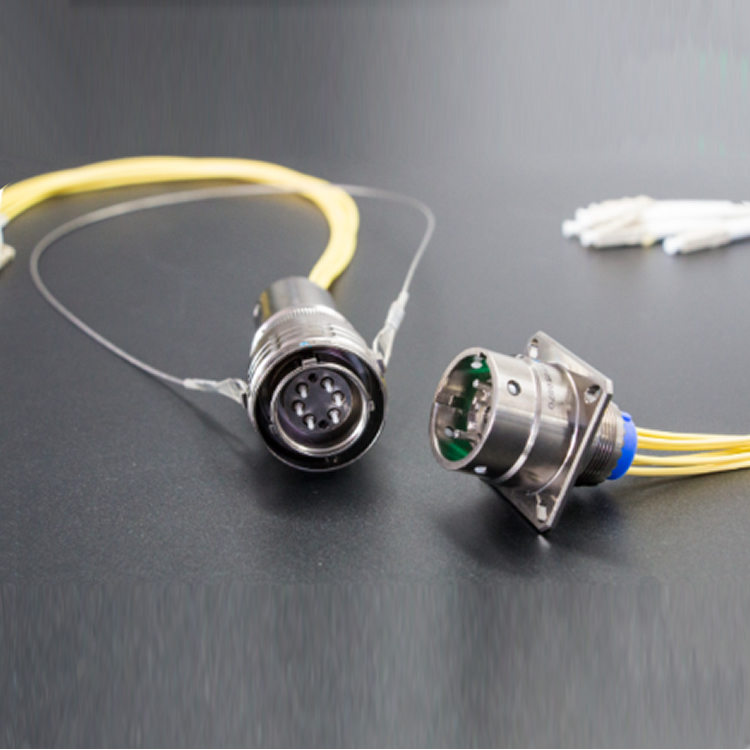

Products Description
Performance conforms to ARINC801 standard
Push-pull type plug-in separation
Three-key positioning with blind mating and error-proof insertion capabilities
Application areas: aerospace systems, ships, aviation, etc.
Mechanical Properties
• Mechanical Life: 500 cycles
• Mechanical Separation Force: ≤50N
• Shock: 980m/s² with a duration of 6ms
• Vibration: 10Hz to 2000Hz, with a Power Spectral Density (PSD) of 0.4G²/Hz
Environmental Performance
• Temperature Range: -55℃ to +125℃ (depending on fiber optic cable temperature)
• Salt Spray: 96h for nickel-plated aluminum alloy; 500h for passivated stainless steel
Optical Performance
• Insertion Loss: ≤0.6dB
Contact Arrangement (Socket Mating Face View)
Outer Dimensions

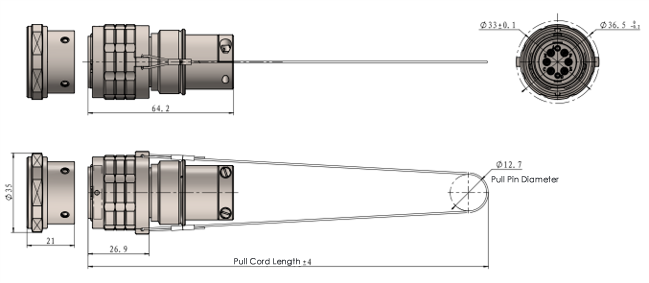

Detachable Plug

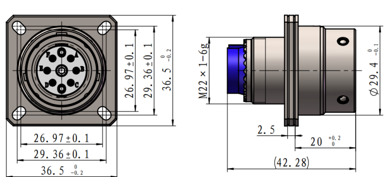

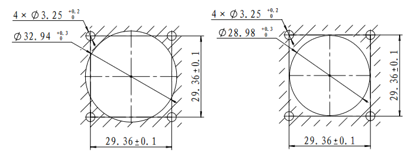

Square Flange Receptacle and Panel Cutout Dimensions

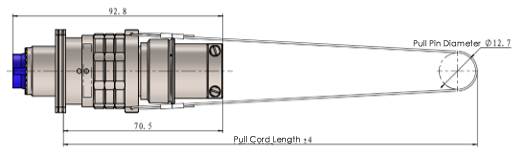

Mated Dimensions of Plug and Receptacle
