Products Description

This series of products is mainly used in deep-water environments, capable of simultaneously transmitting optical and electrical signals. With a three-key guidance system, it features an anti-mismating function.

Mechanical Properties

• Mechanical Life: 500 cycles
• Shock: 490 m/s² with a duration of 11 ms
• Vibration: 10Hz to 500Hz, with an acceleration of 98m/s²

Environmental Performance

• Temperature Range: -40℃ to +80℃
• Watertightness: Capable of withstanding depths of up to 1000 meters

Electrical Performance

• Voltage Withstand: V

Operating Conditions	Sea Level	21000m Altitude
M	1300	800
N	1000	600
I	1800	1000
II	2300	1000

• Insulation resistance: ≥5000MΩ (500V DC)
• Contact resistance and rated current of contact parts:

Contact specifications	Working    diameter mm	Contact resistance mΩ	Rated current   A
22D	Φ0.76	≤12	5
20#	Φ1.00	≤5	7.5
16#	Φ1.60	≤2.5	13
12#	Φ2.40	≤1.5	23

Optical Performance:
• Insertion Loss: ≤0.6 dB

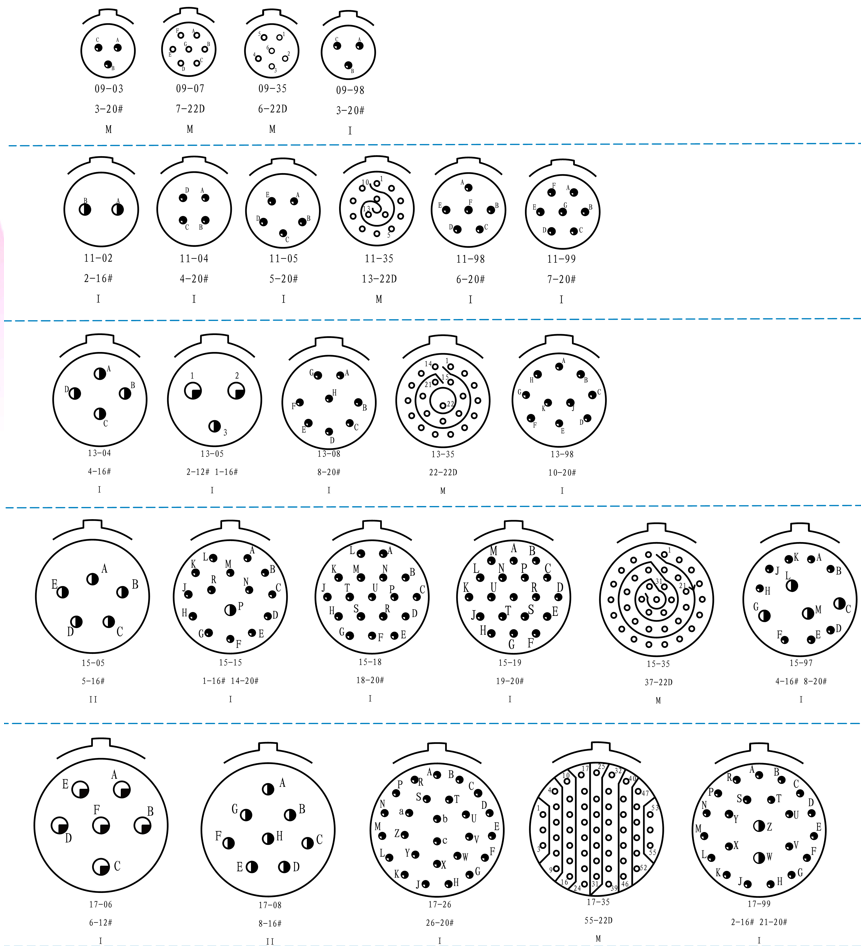

Pin arrangement (view from the mating face of the socket end)
