YZE Series Expanded Beam Fiber Optic Connector

YZE Series Expanded Beam Fiber Optic Connector

ProductFeaturesIt adopts a neutral bayonet-type locking mechanism, enabling quick connection and disconnection.The neutral structural design is unisex, allowing the plug and socket to be interconnected freely.The outer casing can be made of either stainless steel or aluminum alloy.The contact
Send Inquiry
Description
Products Description

Product Features


It adopts a neutral bayonet-type locking mechanism, enabling quick connection and disconnection.

The neutral structural design is unisex, allowing the plug and socket to be interconnected freely.

The outer casing can be made of either stainless steel or aluminum alloy.

The contact components employ collimating lens, featuring non-contact connection, which protects the end face from damage and ensures high mechanical durability. The emitted light spot is large, making it insensitive to dust and highly resistant to environmental factors.

It is suitable for military communications, military computer systems, nuclear power fields, vehicle-mounted communications, as well as other emergency communication applications.


Mechanical Properties

  • Mechanical Life: 1000 cycles of insertion and extraction

  • Tensile Strength: ≥1000N (with appropriate optical cable selection)

  • Vibration: 10Hz to 55Hz, 0.75mm displacement; 55Hz to 500Hz, 98m/s² acceleration

  • Shock: Acceleration of 490m/s², duration of 11ms, half-sine wave, applied in X and Z directions, with 3 shocks in each direction.


Environmental Performance

  • Operating Temperature: -45°C to +70°C

  • Protection Level: IP67


Optical Performance

  • Insertion Loss:
    Multimode ≤ 1.5 dB (typical value 1.2dB, including repeatability and interchangeability)
    Singlemode ≤ 2.0 dB (typical value 1.0dB, including repeatability and interchangeability)

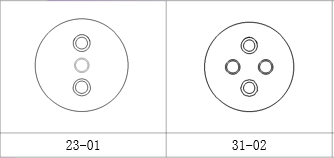

Contact Arrangement

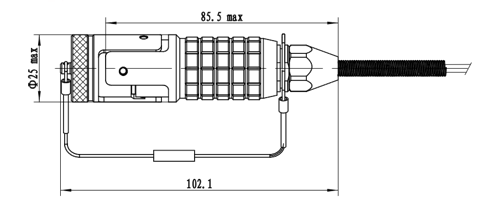

Outline Dimensions of Plug

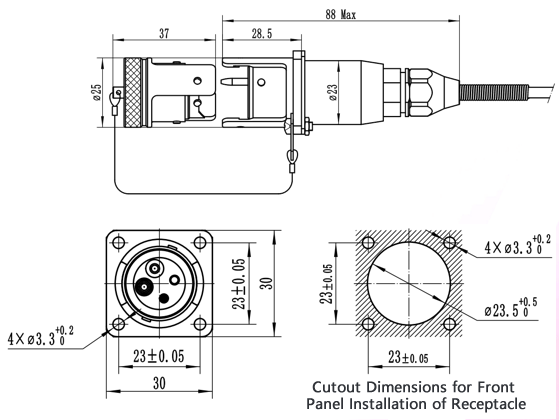

Outline Dimensions of Receptacle
