Products Description
Product Features
Comply with the GJB599B (MIL-DTL-38999) Series Ⅲ interface
The outer shell can be made of different materials and coatings to meet different environmental requirements
Five-key positioning with blind mating and error-proof features
Rapid three-start thread connection with an anti-loosening mechanism
The contact components adopt collimating lenses for non-contact connection, making the end face less prone to damage and ensuring high mechanical life; the emitted light spot is large, making it insensitive to dust and environmentally resilient.
Mechanical Properties
• Mechanical Life: 2000 cycles of insertion and extraction
• Shock Resistance: 980m/s²
• Vibration Resistance: 10Hz to 2000Hz, with an acceleration of 147m/s²
• Tensile Strength: ≥68N (for single-core cables)
Environmental Performance
• Temperature Range: -55℃ to +85℃ (based on fiber optic cable temperature)
• Salt Spray:
Type K: 500 hours
Type F: 48 hours
Type W: 500 hours
Type MW: 192 hours (acidic atmosphere)
• Fluid Resistance: Resistant to various fuels, coolants, and other oils
Optical Performance
• Insertion Loss: ≤0.6dB (Multimode), ≤1.2dB (Singlemode)
Outline Dimensions of Connectors with Tail Attachments
Plug
Angled Attachment Plug
Housing Number | 09 | 11 | 13 | 15 | 17 | 19 | 23 | 25 |
MS Housing Number | A | B | C | D | E | F | H | J |
C | 21.80 | 25.00 | 29.40 | 32.40 | 35.60 | 38.50 | 44.90 | 48.00 |
L1 | 80.90 | 74.70 | 74.20 | 91.60 | 109.60 | -- | 160.00 | -- |
L2 | 63.00 | 63.00 | 67.90 | 68.50 | 70.66 | 74.19 | 80.20 | 83.41 |
L3 | 45.60 | 44.50 | 53.40 | 55.40 | 63.30 | 57.00 | 73.00 | 80.00 |
Dimensions of Plug and Receptacle after Mating
Front-mounted Square Plate/Plug

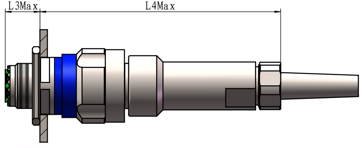

Rear-mounted Square Plate/Plug
Housing Number | MS Housing Number | L1 | L2 | L3 | L4 |
09 | A | 9.30 | 89.10 | 11.80 | 86.60 |
11 | B | 9.30 | 82.90 | 11.80 | 80.40 |
13 | C | 9.30 | 82.40 | 11.80 | 94.90 |
15 | D | 9.30 | 99.80 | 11.80 | 97.30 |
17 | E | 9.30 | 117.80 | 11.80 | 115.30 |
