Products Description
Product Introduction

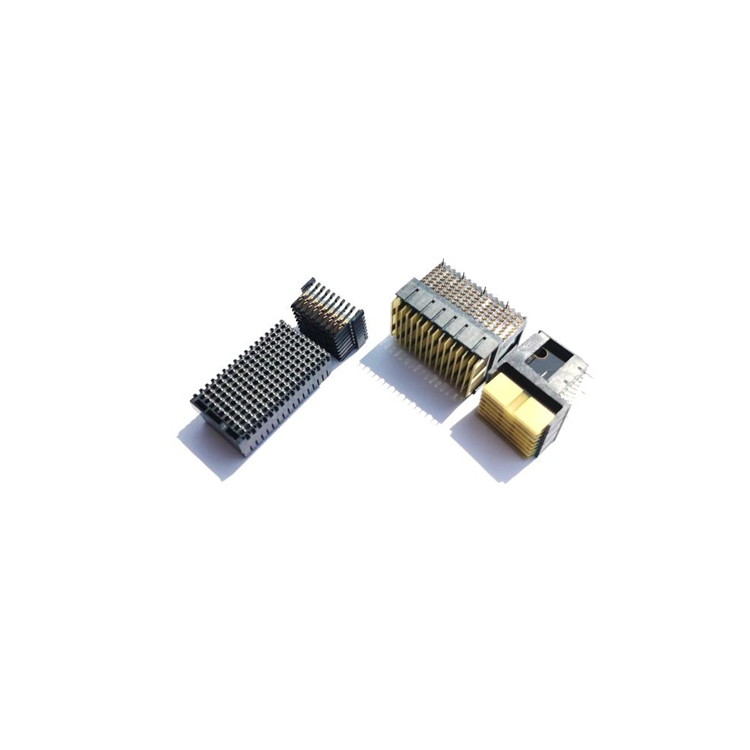

The RT2 Series High-Speed Backplane Connector complies with the VITA41/VITA46/48 standards and is specifically designed for application in VME bus systems. It represents a military-grade, high-density, high-speed, modular, and versatile connector solution.
Features:
Modular and Combinable Structure: Enables integrated and mixed transmission of various signals including differential, single-ended, and power signals, providing flexibility and scalability.
High-Speed Transmission: Capable of achieving transmission rates up to 6.25Gbps, with potential scalability to 10Gbps, ensuring efficient data transfer for demanding applications.
High Density Differential Pairs: Each module accommodates up to 32 differential pairs, achieving a remarkable node density of 113/inch (or 56 pairs/inch), maximizing space utilization and reducing system footprint.
Press-Fit Termination: Features a press-fit termination method, eliminating the need for soldering, which simplifies the assembly process, reduces manufacturing time, and enhances reliability.
This connector is ideal for military and aerospace applications requiring high-performance, compact, and modular connectivity solutions. Its design ensures reliable signal integrity, high-speed data transfer, and easy integration into complex systems.
Mechanical Performance
Mechanical Endurance: Rated for 500 insertion-extraction cycles, ensuring durability and reliability under frequent use.
Shock Resistance: Capable of withstanding shock forces of 294m/s² (30g), with a half-sine wave pulse duration of 11ms, ensuring robustness against sudden impacts.
Random Vibration: Tested and qualified for random vibrations ranging from 10 to 2000Hz, with a power spectral density of 0.2G²/Hz, guaranteeing stable performance in environments with significant vibrations.
Sine Vibration: Designed to endure sine vibrations spanning 10 to 2000Hz, up to a maximum acceleration of 20G, further demonstrating its ruggedness and suitability for demanding applications.
Supported Communication Protocols
1000BASE-KX: Supports Gigabit Ethernet over backplane and copper cables, providing high-speed network connectivity.
10GBASE-KX4: Enables 10 Gigabit Ethernet transmission over copper cables, offering faster data rates for bandwidth-intensive applications.
InfiniBand SDR, DDR, and QDR: Compatible with InfiniBand standards, including Standard Data Rate (SDR), Double Data Rate (DDR), and Quad Data Rate (QDR), facilitating high-speed, low-latency data communication between servers and storage systems.
PCIe Gen 1, 2, and 3: Supports the latest generations of Peripheral Component Interconnect Express (PCIe) technology, allowing for increased bandwidth and performance in graphics cards, SSDs, and other expansion cards.
Serial RapidIO 2.5, 3.125, 5, and 6.25 Gbaud: Enables high-speed, low-latency point-to-point and point-to-multipoint serial interconnects, optimized for embedded systems and data-intensive applications.
Electrical Performance
Low-Level Contact Resistance: ≤40mΩ, ensuring efficient electrical conductivity and minimal signal loss.
Rated Current: 8A per power contact, 1A per signal contact, providing sufficient current handling capability for various applications.
Insulation Resistance: ≥10000MΩ for power contacts and ≥1000MΩ for signal contacts, ensuring electrical isolation and preventing current leakage.
Dielectric Withstanding Voltage: 500V, demonstrating the connector's ability to withstand high voltage without breakdown.
Differential Characteristic Impedance: 100Ω, optimized for high-speed differential signaling to maintain signal integrity.
Transmission Rate: 6.25Gbps, enabling high-speed data transfer for demanding applications.
Crosstalk: Better than -30dB, minimizing interference between adjacent signal paths.
Environmental Performance
Operating Temperature: -55℃ to +125℃, ensuring reliable operation in extreme temperature conditions.
Salt Spray Resistance: 48 hours, demonstrating the connector's ability to withstand corrosive environments.
Flammability Rating: UL94 V-0, indicating a high level of fire resistance and safety in case of accidental ignition.
高速传输性能
High-Speed Transmission Performance

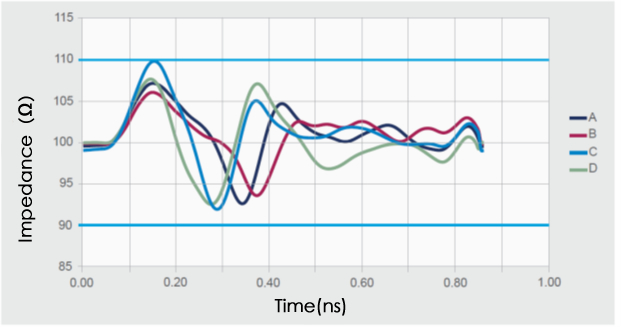

Differential Characteristic Impedance

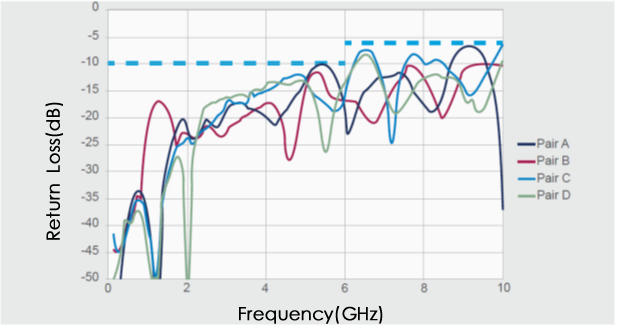

Insertion Loss And Return Loss

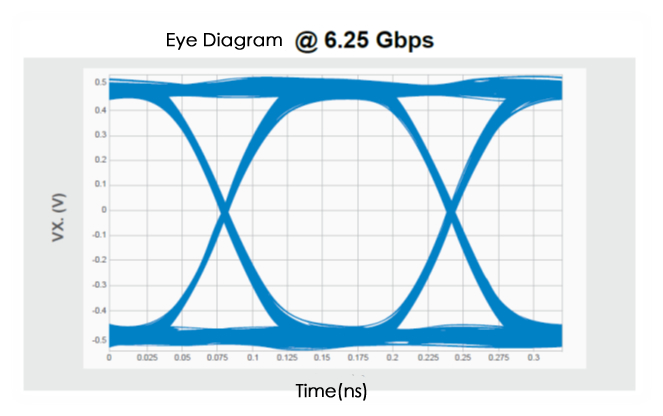

Eye Diagram

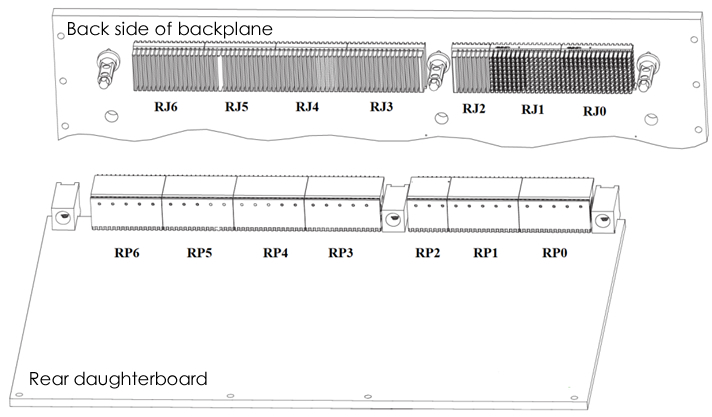

Product order model

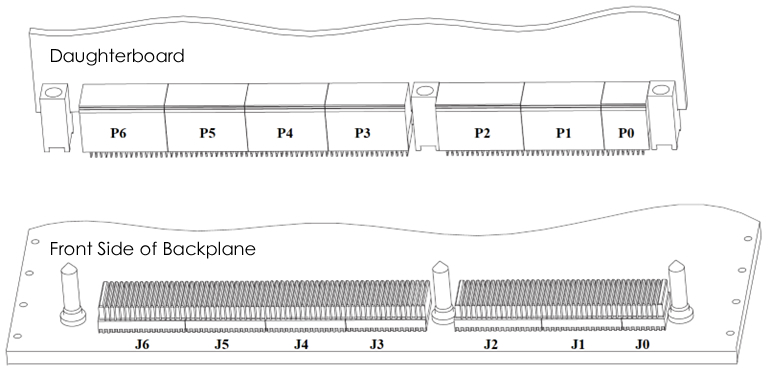

Plug connector position | Order Model | |
P0 | 1410189-3 | |
P1、P2、P3、P4、P5、P6 | Differential Module | 1410187-3 |
Single-ended module | 1410190-3 | |
Identification Guide Bushing | 1-1469492-X | |
Plug connector position | Order Model |
J0 | 1410186-1 |
J1、J3、J4、J5 | 1410140-1 |
J2、J6 | 1410142-1 |
Identification Guide Pin | 1-1469491-X |
