Products Description
Product Introduction
Conforming to the MIL-PRF-64266B series standard
Imperial double-headed threaded quick connection with locking mechanism
Three-key circumferential recognition and positioning for blind insertion and error-proof insertion
The outer shell can be made of different materials and coatings to meet different environmental requirements
Detachable standard Φ1.25mm neutral fiber optic contact is adopted
Removable ASR components for easy cleaning and maintenance
The product applies mature and new technologies of connectors that meet the MIL-PRF-28876 and MIL-DTL-38999III series standards, and has better mechanical and environmental resistance performance
Optical Performance
Insertion Loss: ≤0.5dB
Return Loss:
≥30dB (MM, SM/PC)
≥40dB (SM/UPC)
≥60dB (SM/APC)
Optical Discontinuity: 50μs, 0.5dB
Environmental Performance
Temperature Range: -55°C to +165°C
High-Temperature Life: 165°C for 1000 hours
Salt Spray:
Class A: 500 hours
Class B: 500 hours
Class F: 48 hours
Mechanical Performance
Housing Material and Plating:
A - Aluminum Alloy, Cadmium-Plated Military Green
B - Stainless Steel, Passivated
F - Aluminum Alloy, Nickel-Plated
Mechanical Life: 500 mating cycles
Shock Resistance: 300G
Vibration Resistance:
Sine Vibration: 60G
Random Vibration: 1.0G²/Hz

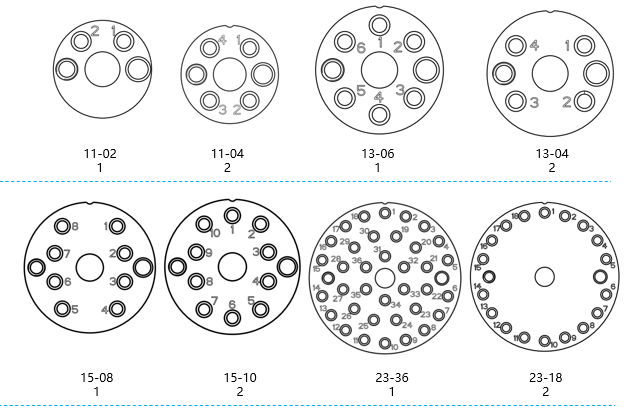

Contact Arrangement (View of Mating Face at Socket End)
