Products Description
Product Introduction

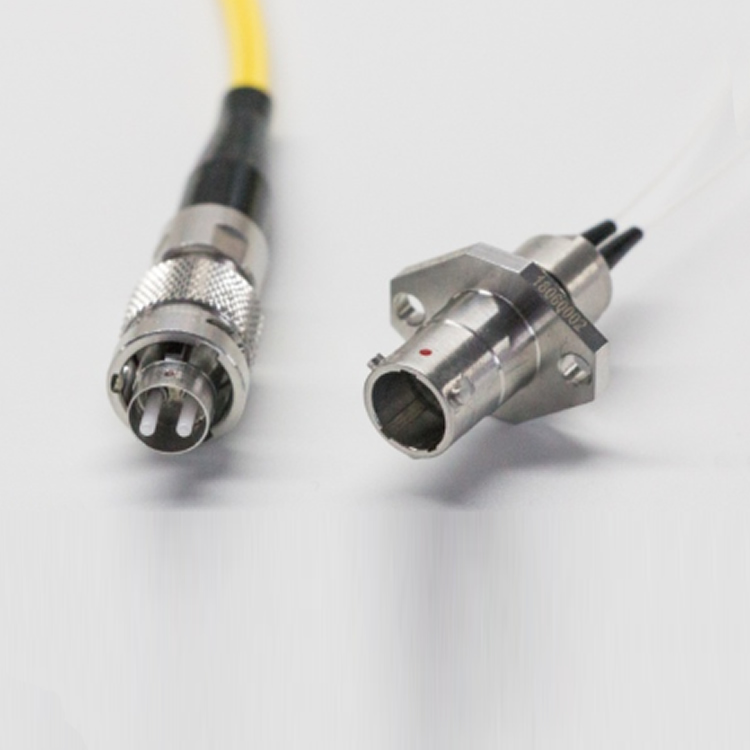

Suitable for use in electronic, aviation, military, naval, and other systems, with strong environmental endurance capabilities, replacing FC, LC, and other civilian active connectors.
The outer shell can be made of various materials and coatings to adapt to different environmental requirements.
Three-key positioning, featuring blind mating and error-proof insertion capabilities.
Quick bayonet connection.
Optical alignment is achieved through precision mating of ceramic ferrules and sleeves.
Adapter socket, freeing from the constraints of optical cables.
Mechanical Properties
• Mechanical Life: 500 cycles of insertion and removal
• Shock Resistance: Acceleration of 2940m/s²
• Vibration Resistance: 10Hz to 2000Hz, with an acceleration of 0.2G²/Hz
• Tensile Strength: ≥68N (for contact elements compatible with Φ2 optical cables)
Environmental Performance
• Temperature Range: -55°C to +85°C (depending on the optical cable temperature)
• Salt Spray: Class K: 500 hours, Class F: 48 hours
Optical Performance
• Insertion Loss: ≤0.5dB

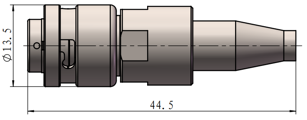

Plug Dimensions
 | JYSK22N02 |
 | JYSK22N02D |
 | JYSK22N04 |
 | JYSK22N15 |
 | JYSK24N02 |
 | JYSK2M12N |
