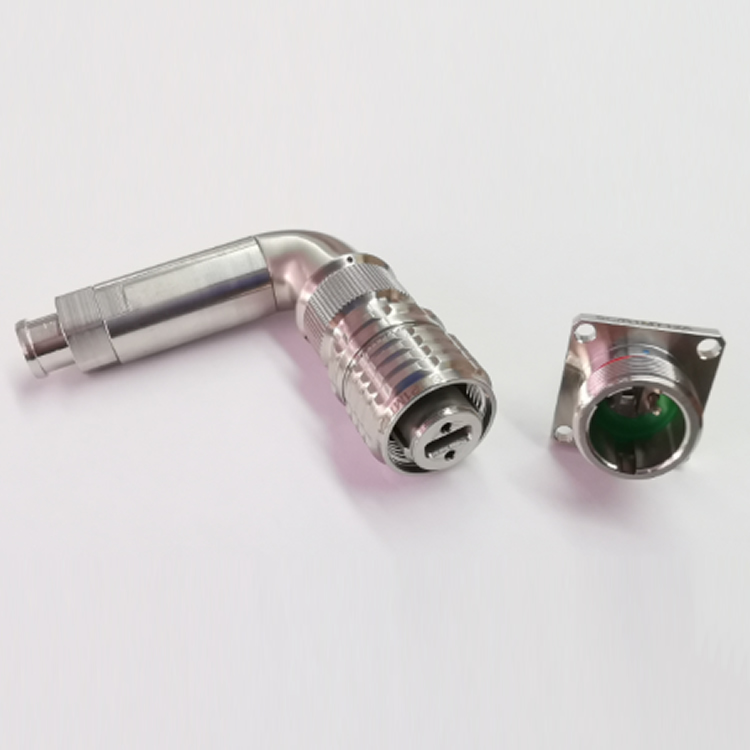

Products Description
This series of products adopts a threaded quick-connect design and incorporates a new self-locking and anti-loosening structure, making it suitable for use in complex environments with strong vibrations, impacts, and other challenges. The overall compact design of the product satisfies the requirements for normal installation and usage in environments and spaces with limited connector usage.
Mechanical Properties
• Mechanical Life: 500 cycles of insertion and extraction
• Shock: 980m/s² with a duration of 6ms
• Vibration: 10Hz to 2000Hz, with a power spectral density of 0.4G²/Hz
Environmental Performance
• Temperature Range: -55℃ to +85℃
• Salt Spray: 500 hours (Stainless Steel 316L)
Optical Performance
• Insertion Loss: ≤0.6dB

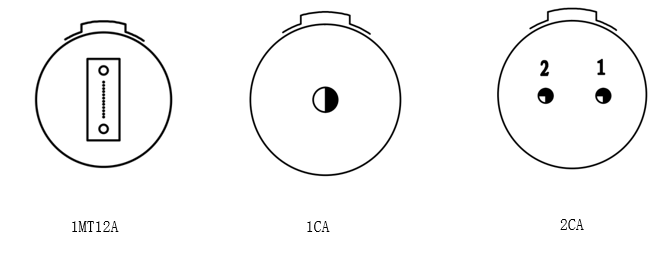

Contact Arrangement (View from the Mating Face of the Receptacle)
Overall Dimensions

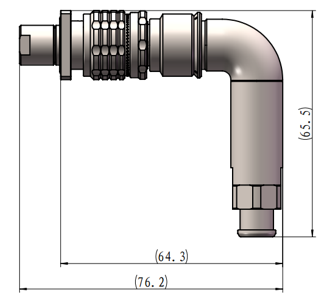

Plug
Square Flange Mount Receptacle
Dimensions after Mating of Plug and Receptacle
