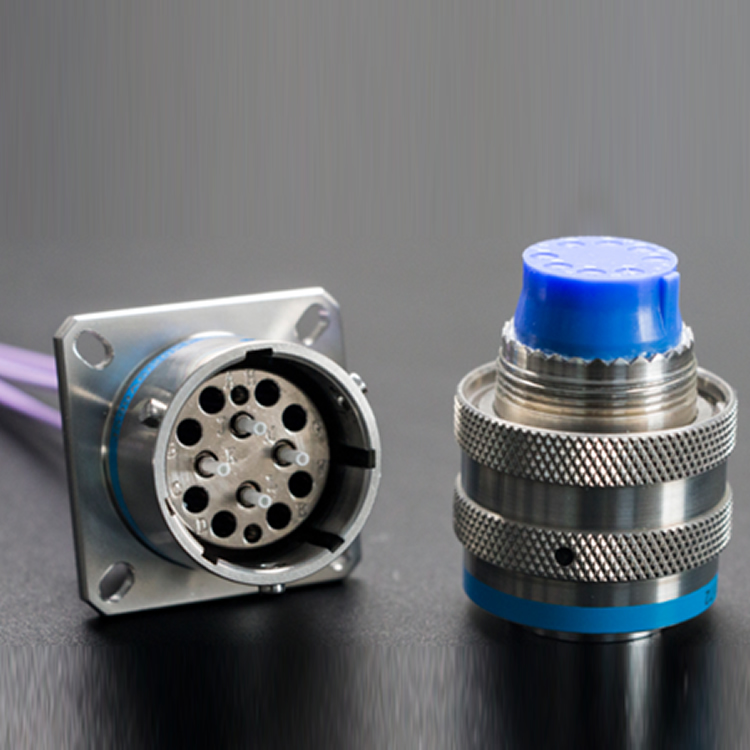

Products Description
Product Features
Compatible with J599III series connector mounting dimensions
Applicable to systems in aviation, electronics, naval vessels, weapons, and other fields with limited installation space
Quick-turn locking mechanism for realizing multi-channel optical communication
Shell available in various materials and coatings to suit different environmental requirements
Five-key positioning for blind mating and error-proof connection
Bayonet-style structure for quick connection
Contacts featuring collimating lenses, non-contact connection, protected end faces against damage, high mechanical durability, large emission spot size, dust insensitivity, and strong environmental resilience
Mechanical Properties
• Mechanical Life: 2000 mating and unmating cycles
• Shock: Peak acceleration of 2940m/s² with a duration of 3ms, and a velocity change rate of 5.61m/s
• Vibration: 10Hz to 2000Hz, power spectral density of 0.2G²/Hz, with an acceleration root mean square (RMS) value of 16.4
• Tensile Strength: ≥68N (for 2mm contact jumper)
Environmental Performance
• Temperature Range: -55℃ to +125℃ (depending on the optical cable temperature)
• Salt Spray: Class K: 500h, Class F: 48h, Class W: 500h, Class MW: 192h (acidic atmosphere)
• Hermeticity (suitable for hermetic adapter sockets): Gas leak rate ≤1×10-9Pa.m3/s, with an internal and external pressure difference of 1 atmosphere
Optical Performance
• Insertion Loss: ≤0.6dB @850nm; ≤0.8dB @1310nm
• Return Loss: ≥20dB @850nm; ≥45dB @1310nm

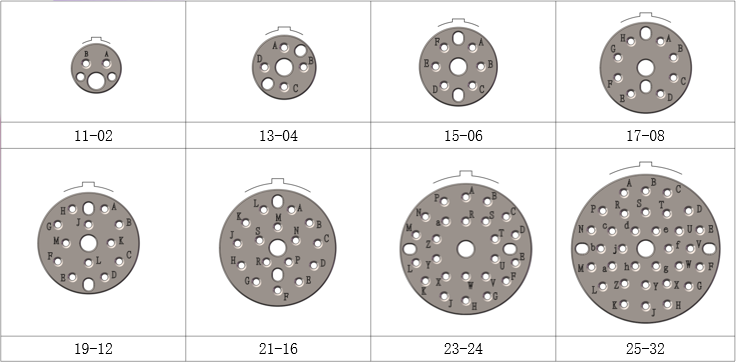

Pin Arrangement (Example: View from the Mating Face of the Plug)

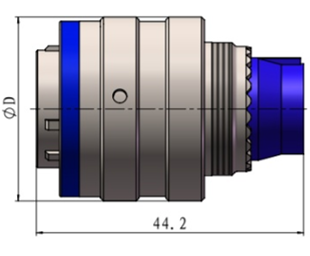

Plug Outline Dimensions
Housing Number | 11 | 13 | 15 | 17 | 19 | 21 | 23 | 25 |
MS Housing Number | B | C | D | E | F | G | H | J |
D | 23.00 | 27.20 | 30.50 | 33.50 | 37.00 | 39.50 | 43.00 | 46.00 |

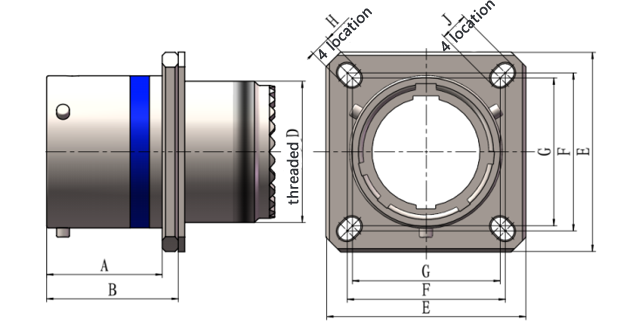

Square Flange Receptacle Outline Dimensions (Without Tail Attachment)
Housing Number | MS Housing Number | A | B | C | Threaded D | E | F | G | H | J | d1 min | d2 min |
11 | B | 20.70 | 13.70 | 2.50 | M15×1 | 26.20 | 20.62 | 18.26 | 3.25 | 4.93 | 20.22 | 15.88 |
13 | C | 20.70 | 13.70 | 2.50 | M18×1 | 28.60 | 23.01 | 20.62 | 3.25 | 4.93 | 23.42 | 19.05 |
15 | D | 20.70 | 13.70 | 2.50 | M22×1 | 31.00 | 24.61 | 23.01 | 3.25 | 4.93 | 26.59 | 23.01 |
17 | E | 20.70 | 13.70 | 2.50 | M25×1 | 33.30 | 26.97 | 24.61 | 3.25 | 4.93 | 30.96 | 25.81 |
19 | F | 20.70 | 13.70 | 2.50 | M28×1 | 36.50 | 29.36 | 26.97 | 3.25 | 4.93 | 32.94 | 28.98 |
21 | G | 20.70 | 13.80 | 3.20 | M31×1 | 39.70 | 31.75 | 29.36 | 3.25 | 4.93 | 36.12 | 32.16 |
23 | H | 20.70 | 13.80 | 3.20 | M34×1 | 42.90 | 34.93 | 31.75 | 3.90 | 6.15 | 39.29 | 34.93 |
25 | J | 20.70 | 13.25 | 3.20 | M37×1 | 46.00 | 38.10 | 34.93 | 3.90 | 6.15 | 42.47 | 37.69 |

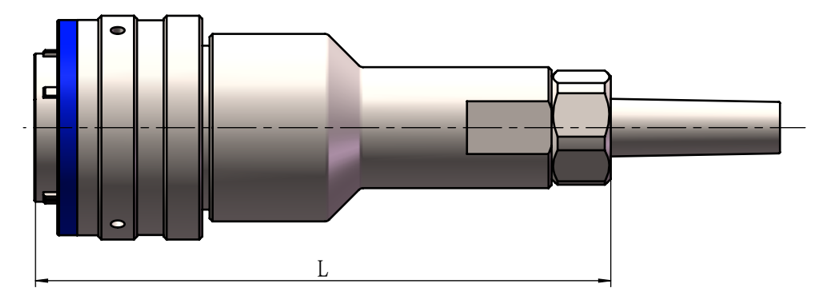

Plug and Receptacle Outline Dimensions (Including 41 Tail Attachment)
Note: The L dimension in the table represents the maximum size for that particular housing number, and the actual length may vary depending on the specific housing number.
Housing Number | 11 | 13 | 15 | 17 | 19 | 21 | 23 | 25 |
MS Housing Number | B | C | D | E | F | G | H | J |
L | 90 | 90 | 90 | 90 | 95 | 95 | 95 | 95 |
